1800M Gigabit Dual-Band WiFi6 Mesh Wireless Router
1800M Gigabit Dual-Band WiFi6 Mesh Wireless Router - Image 2
1800M Gigabit Dual-Band WiFi6 Mesh Wireless Router - Image 3

1800M Gigabit Dual-Band WiFi6 Mesh Wireless Router

Product Advantage GP-AX1800-M is a concurrent dual band ax1800 wireless router, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n/ac/ax and IEEE 802.11a networks. It’s a SOHO-class network security solution for family home, broadband communications and small SOHO. 4× Antennas for good coverage Support 802.11ax 2T2R speed up…

Category: ,

Description

Product Advantage

GP-AX1800-M is a concurrent dual band ax1800 wireless router, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n/ac/ax and IEEE 802.11a networks.
It’s a SOHO-class network security solution for family home, broadband communications and small SOHO.

  • 4× Antennas for good coverage
  • Support 802.11ax 2T2R speed up to 1200Mbps
  • Support 802.11ax 2T2R speed up to 600Mbps
  • 3x 10/100/1000BASE-T Ethernet RJ45 LAN
  • 1x 10/100/1000BASE-T Ethernet RJ45 WAN

Product Parameter

GP-AX1800-M is a concurrent dual band ax1800 wireless router, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n/ac/ax and IEEE 802.11a networks.

It’s a SOHO-class network security solution for family home, broadband communications and small SOHO.

CPUMIPS8800 MHz
Chip modelMT7621A
MemoryNAND FLASH 1Gbit(128MB)
DDR3 1Gbit(128MB)
WiFi Chipset2.4G&5G: MT7905DAN+MT7975DN

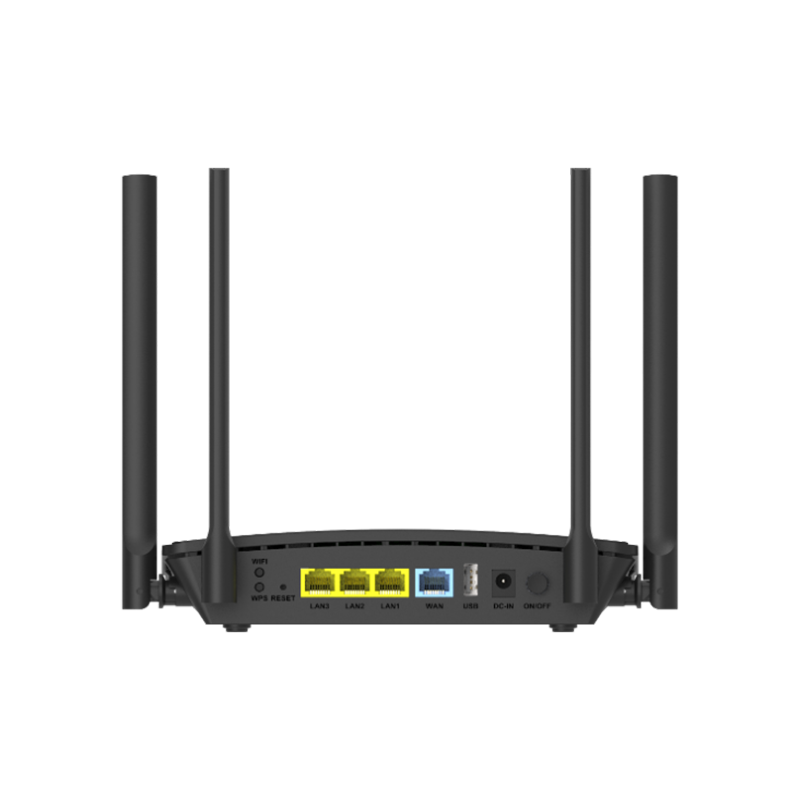

InterfaceWAN: 1*10/100/1000Mbpsauto MDI/MDI-X RJ-45 ports
LAN: 3*10/100/1000Mbpsauto MDI/MDI-X RJ-45 ports
ButtonsWiFi/WPS/Reset/Poweron/off
LED IndicatorsPower, WAN, LAN1, LAN2, LAN3, 2.4GWLAN, 5GWLAN,WPS, USB
WiFi Rate2.4G:802.11b/g/n/ax@600Mbps
5G:802.11/a/n/ac/ax@1200Mbps
Frequency Band2.4 GHz frequency band :40MHz
5 GHz frequencyband: 80MHz
Antennas2.4G: 2*5dBiExternalantennas
5G: 2*5dBiExternalantennas
PowerSupplyDC 12V 1.5A
Product Size221.5X147.1X38.5mm(length X width X height)
Work EnvironmentWorking temperature: 0°C—40°C
Working humidity: 5—95%
WAN ConnectionSupport DHCP, PPPoE and Static IP address three internet access models, Support WAN automatic detection, MAC Clone
Wireless FunctionWiFi5/WiFi6 basic function, Guest network, Intelligent networking, Wireless Repeater,Easymesh
Wireless EncryptionWPA/WPA2, WPA2, WPA3
ManagementFunctionWEB, Telnet/CLI,TR069
System MaintenanceDevice management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced FunctionParental control, Virtual server, DDNS, VPN, IPV6, UPnP
CertificationCE/WiFicertification
RCM
