GP-AC1200 WiFi5 Router

Description

Product Advantage

The GP-AC1200 Wireless Router is compatible with IEEE802.11n and IEEE802.11ac standard, which supports data rate up to 1200 Mbps in 2.4 GHz band and 5 GHz band, which is also compatible with IEEE 802.11g/b wireless devices. Transmission power up to 100mW and omni directional antenna design, which can effectively improve the Wi-Fi coverage. It combines the router, wireless access points, four switches, firewall as a whole, and provides a very convenient comprehensive network management functions. The GP-AC1200 wireless router is designed to satisfy the small business, office and home office wireless Internet needs, it ispowerful superior performance, is easy to manage your Shared wireless broadband Internet access, the best choice for common haring broadband Internet.

Complies with IEEE802.11n, IEEE802.11ac, IEEE802.11b/g, IEEE802.3i, IEEE802.3u
Transmission power up to 100mW, which can effectively improve the Wi-Fi coverage
High speed data rate up to 1200Mbps
Supports Virtual Server and DMZ
Supports 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
Supports MAC/IP filtering and URL blocking
Supports DHCP server and Anti-Dos firewall
Web user interface (remote configuration), firmware upgradeable

Product Parameter

Hardware Specification
Model Name	RTL8197FH+RTL8812FR
CPU Frequency	1GHz
RAM capacity	64MByte(DDR2)
ROM capacity	16MByte(SPI flash)
Standards and Protocols	Wireless 5GHz: IEEE 802.11ac,IEEE 802.11n,IEEE 802.11a 2.4GHz: IEEE 802.11n,IEEE 802.11g,IEEE 802.11b
	Wired IEEE802.3i,IEEE802.3u
Operating Frequency	2.4GHz & 5GHz
Signal Rate	2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps
Modulation	IEEE 802.11b:CCK, QPSK, BPSK IEEE11g/a:OFDM IEEE11n:QPSK, BPSK, 16-QAM, 64-QAM IEEE11ac:BPSK, QPSK, 16QAM, 64QAM, 256QA
Transmit Power	2.4GHz:≦20dBm 5GHz:≦18dBm
Indicators	PWR ,SYS,WAN, LAN1,LAN2,LAN3,WLAN

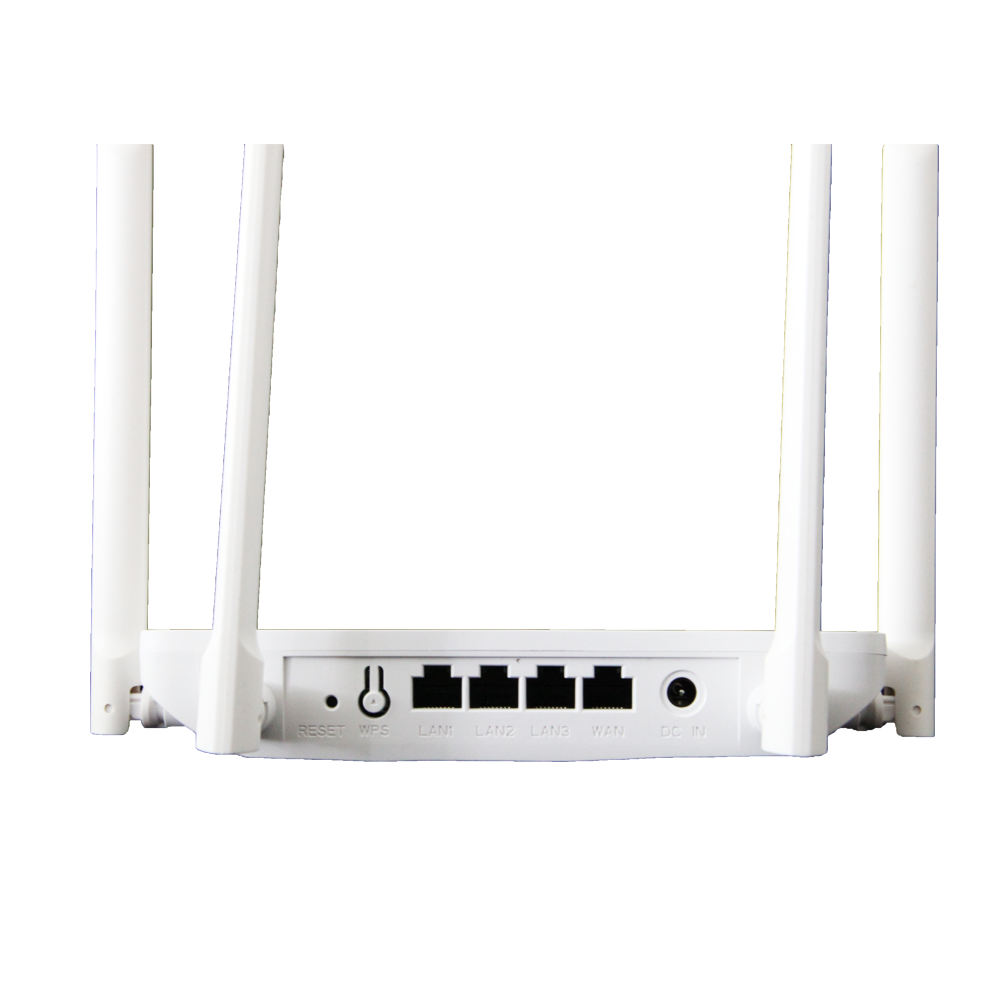

Interfaces	1 10/100/1000Mbps WAN Port(RJ45) 3 10/100/1000Mbps
Button	1 Reset
Antenna	2 single band 2.4G 5dBi omni directional non-detachable antennas, 2 single band 5G 5dBi omni directional non-detachable antennas
Power Supply	12V/1A adapter
Dimensions (W x D x H)	13320025mm
Environment	Operating Temperature: 0℃~40℃ StorageTemperature:-40℃~70℃Operating Humidity:10%~90% non-condensing StorageHumidity:5%~90% non-condensing
Certification	CE / WiFi certification RCM
Software Specification
Practical function DDNS Wireless relay Quick Setup	Network Settings WAN connection types supported: PPPoE,DHCP,Static IP,PPtP,L2TP MAC Clone Diagnostics Static Router IPv6	System configuration Software upgrade Save&reload settings System log NTP server Language
Security Settings WEB management Telnet AndLink	DHCP Settings DHCP Server DHCP Client The client list Static IP	Firewall DMZ Port Forward Port/URL/MAC fil
Wireless basic function Wireless enable/disable WPS Mutilple SSID	Wireless Security 64/128-bit WEP Encryption WPA/WPA2、WPA-PSK/WPA2- PSKK
