GP-AX3000

Description

Product Advantage

The GP-AX3000 is a concurrent dual band wireless router, which has been upgraded to the latest 802.11ax standard technology while maintaining compatibility with IEEE 802.11b/g/n/ac and IEEE 802.11ax networks. It’s a SOHO-class network security solution for family home, broadband telecommuter.

Characteristic

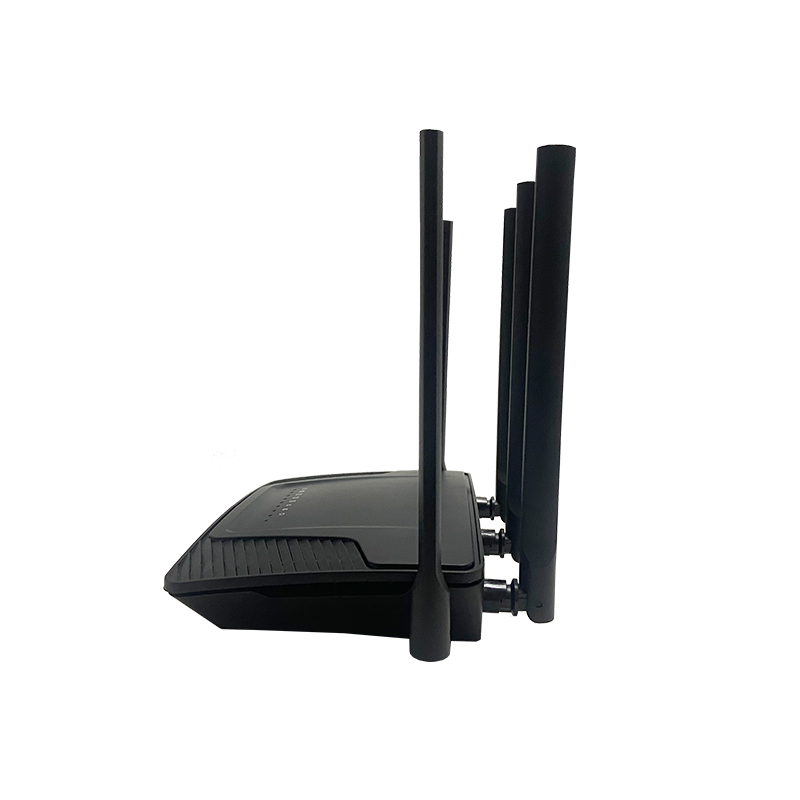

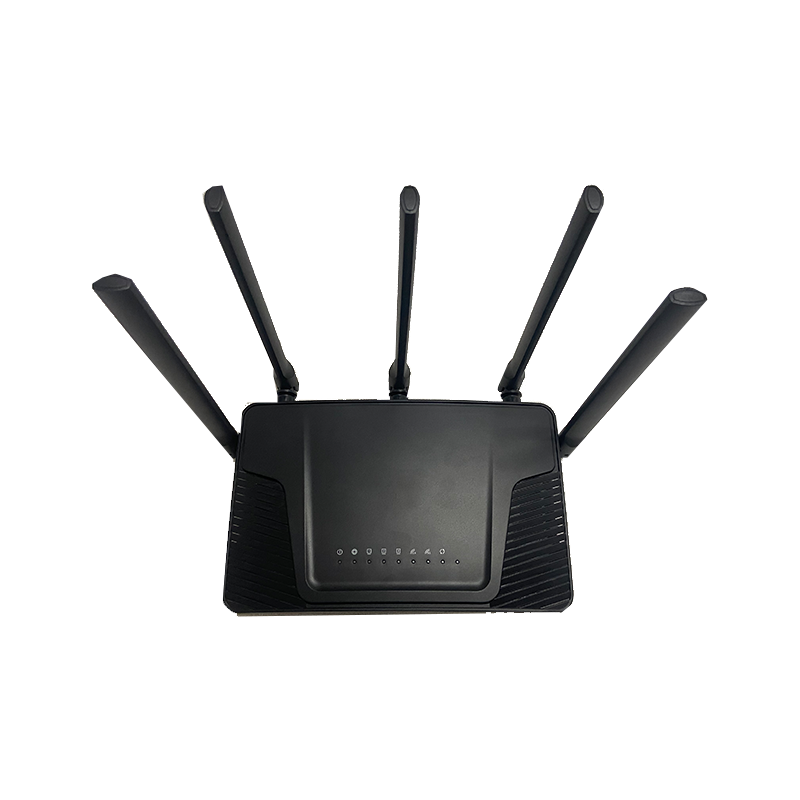

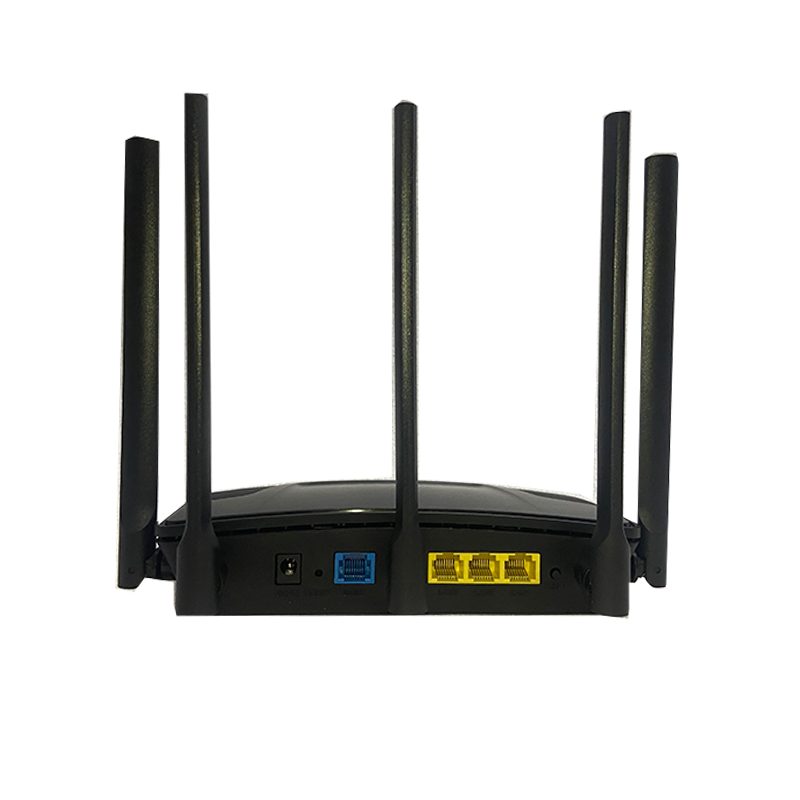

GP-AX3000-M

• 1*WAN 10/100/1000/2500Mbps
• 3*LAN 10/100/1000Mbps
• Support 802.11ax 2T2R speed up to 576Mbps
• Support 802.11ax 2T2R speed up to 2400Mbps
• 5× Antennas for good coverage

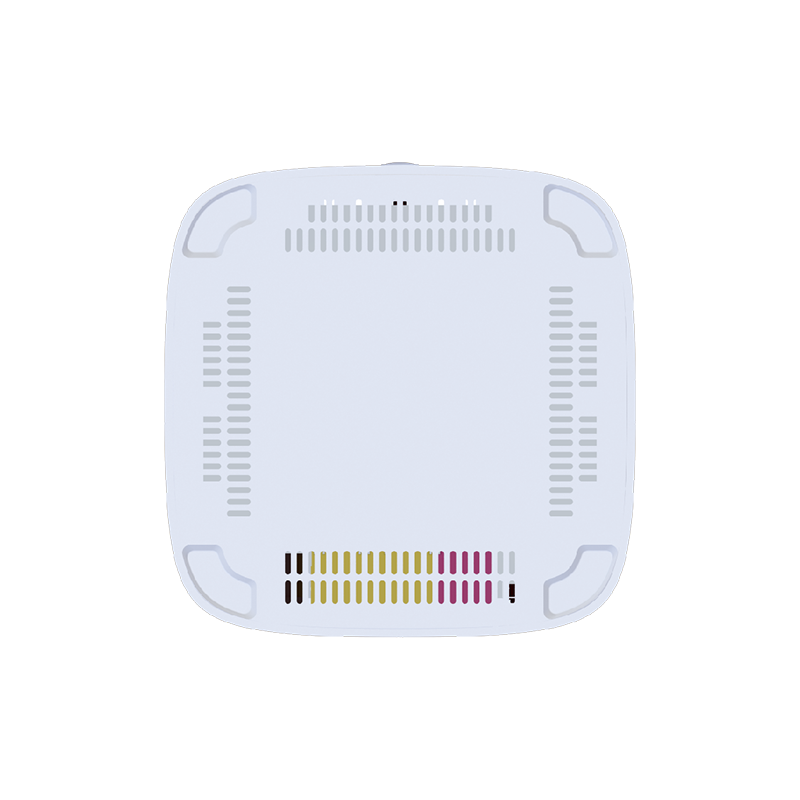

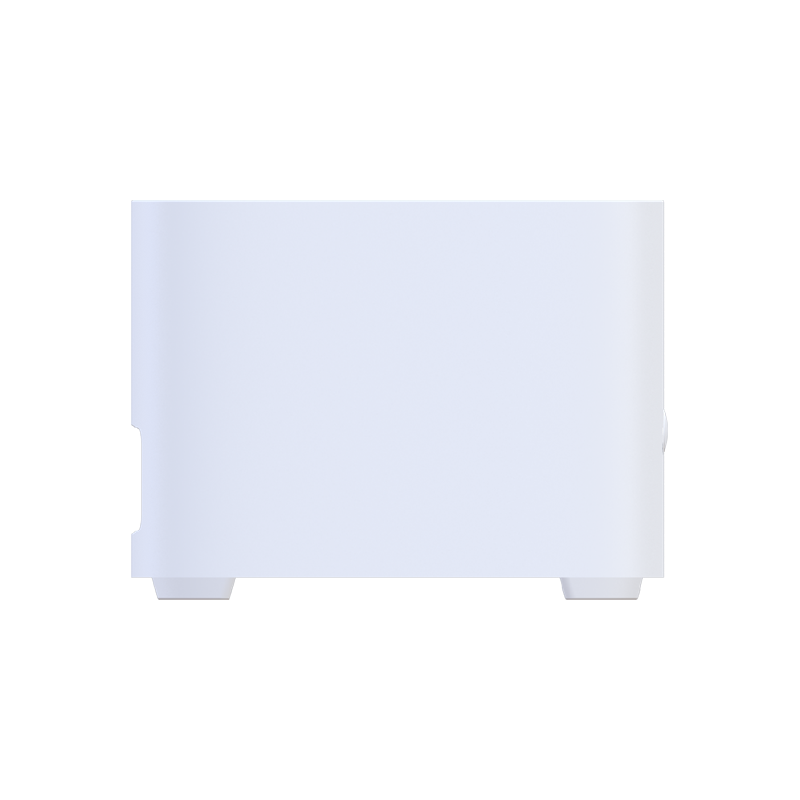

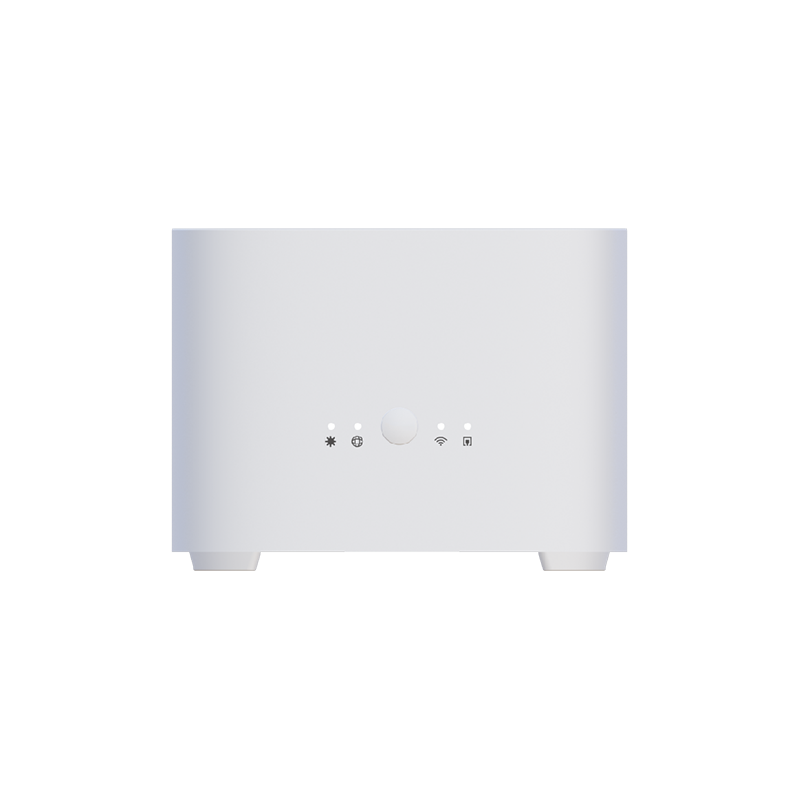

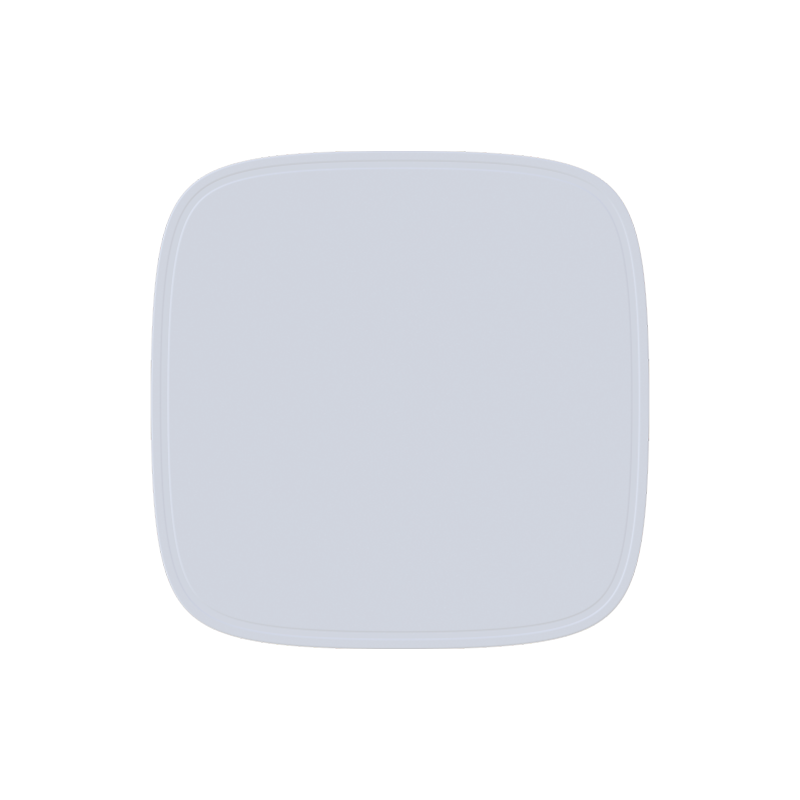

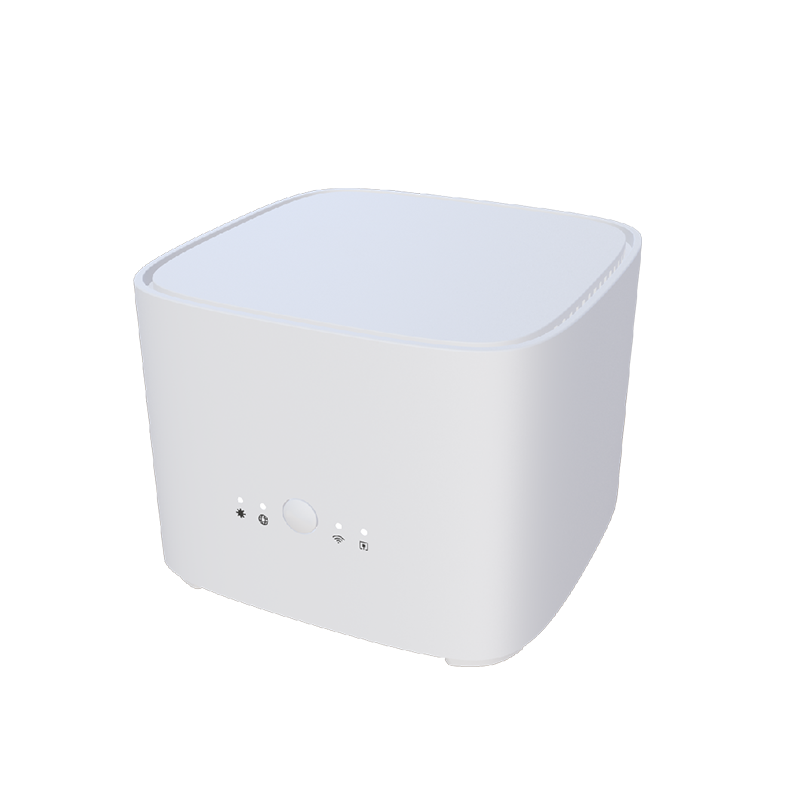

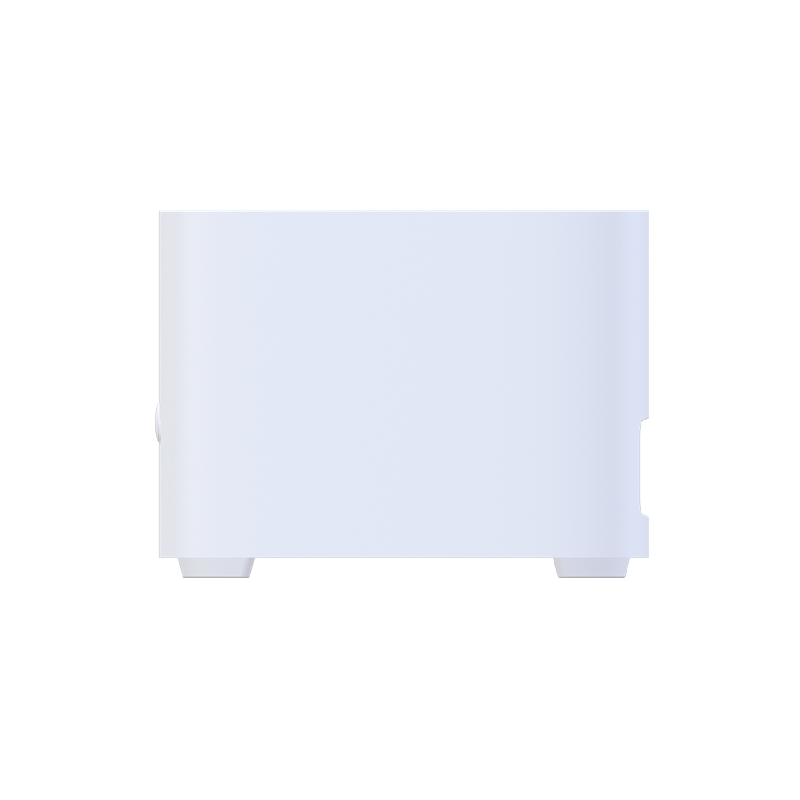

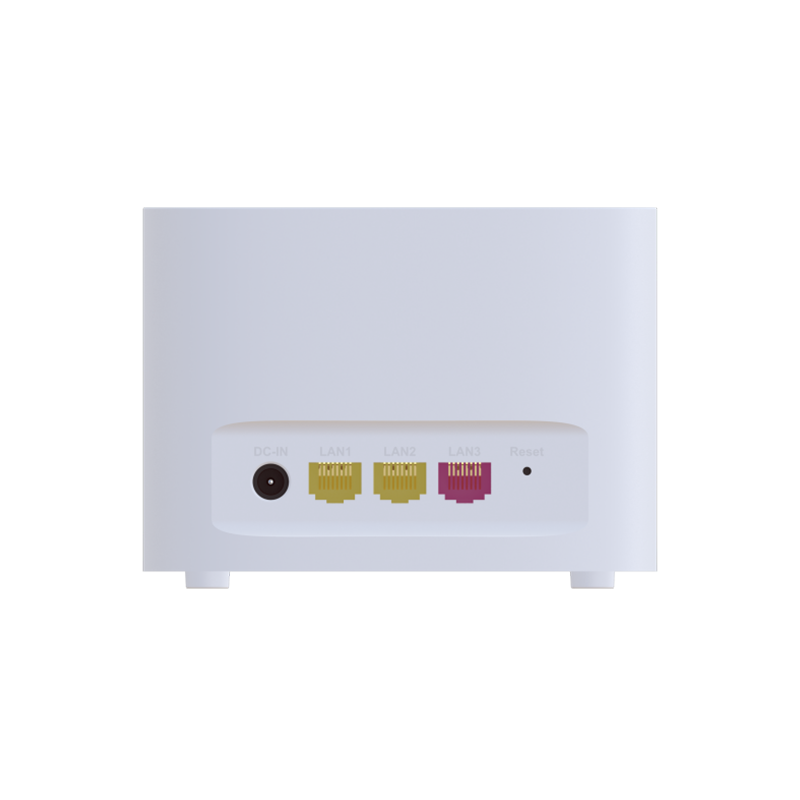

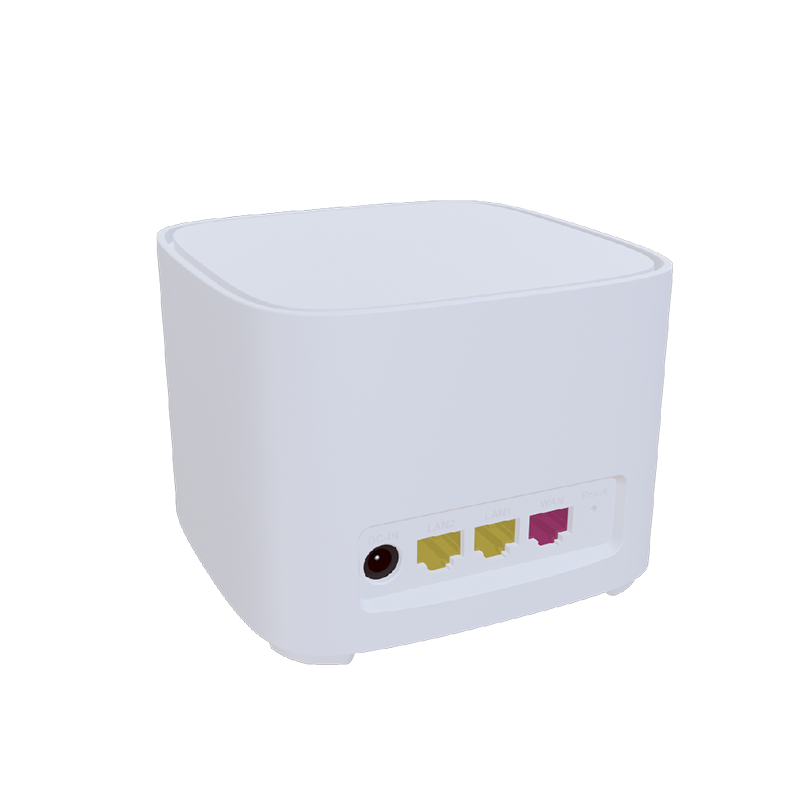

GP-AX3000-D

• 1x 10/100/1000/2500BASE-T Ethernet RJ45 WAN Ports
• 2x 10/100/1000BASE-T Ethernet RJ45 LAN Ports
• Support 802.11ax 2T2R speed up to 600Mbps
• Support 802.11ax 2T3R speed up to 2400Mbps
• Five Antennas for good coverage

Product Parameter

Chip model	MT7981BA+MT7531AE+MT7976CN+RTL8221B	MTK7981B
Memory	512MB DDR4	NAND FLASH 1Gbit(128MB)/DDR4 4Gbit（512MB）
Interface	1 WAN 10/100/1000/2500Mbps 3 LAN 10/100/1000Mbps1*DC JACK	1 WAN 10/100/1000/2500Mbps auto MDI/MDI-X RJ-45 ports 2 LAN 10/100/1000Mbps auto MDI/MDI-X RJ-45 ports
WiFi Rate	2.4G 11AX HT40 MCS11=17dBm(+/-2dB) 5G 11AX HT80 MCS11=17dBm(+/-2dB)	2.4G:802.11b/g/n/ax@600Mbps 5G:802.11/a/n/ac/ax@2400Mbps
Indicator Lights	Power, WAN, LAN1-3, 2.4G, 5G, WPS	Power, Internet, 2.4G WLAN, 5G WLAN, ETH, Mesh
Buttons	1 WPS 1 Reset	Mesh/Reset
Antennas	2 2.4G 5dBifixed external antennas 3 5G 5dBifixed external antennas	2.4G: 2*3dBi Internal antennas 5G: 3*3dBi Internal antennas
Power adapter	DC 12V 1.5A	DC 12V 1.0 A
Working Temperature	0°C—40°C	0°C—40°C
Working Humidity	10—90%	5—95%

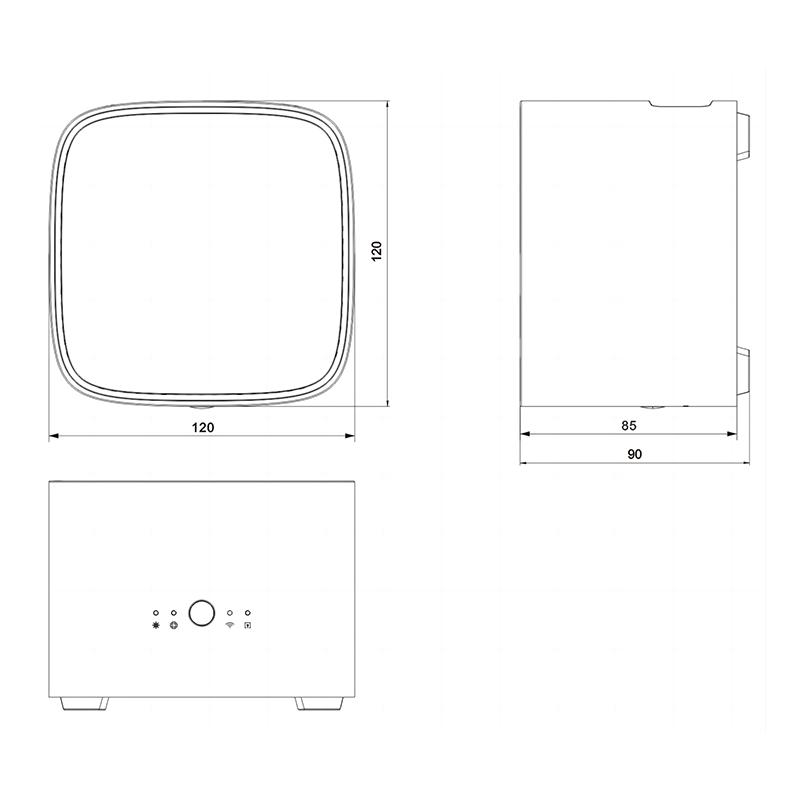

Dimensions (L x W x H)	230 x 140 x 30 mm	120 x 120 x 85 mm
WAN Connection	Support DHCP, PPPoE and Static IP address three internet access models, Support WAN automatic detection, MAC Clone	Support DHCP, PPPoE and Static IP address three internet access models, Support WAN automatic detection, MAC Clone
Wireless Function	WiFi5/WiFi6 basic function, Guest network, Intelligent networking, Wireless Repeater, Easy mesh	WiFi5/WiFi6 basic function, Guest network, Intelligent networking, Wireless Repeater, Easy mesh
Wireless Encryption	WPA/WPA2, WPA2, WPA3	WPA/WPA2, WPA2, WPA3
Management FUnction	WEB, Telnet/CLI	WEB, Telnet/CLI, TR069
System Maintenance	Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset	Device management, Configuration management, Upgrade management, Log function, Status statistics, Restart/reset
Advanced Function	Parental control, Virtual server, DDNS, VPN, IPV6, UPnP	Parental control, Virtual server, DDNS, VPN, IPV6, UPnP
Certification	CE / WiFi certification RCM	CE / WiFi certification RCM
