Introduction

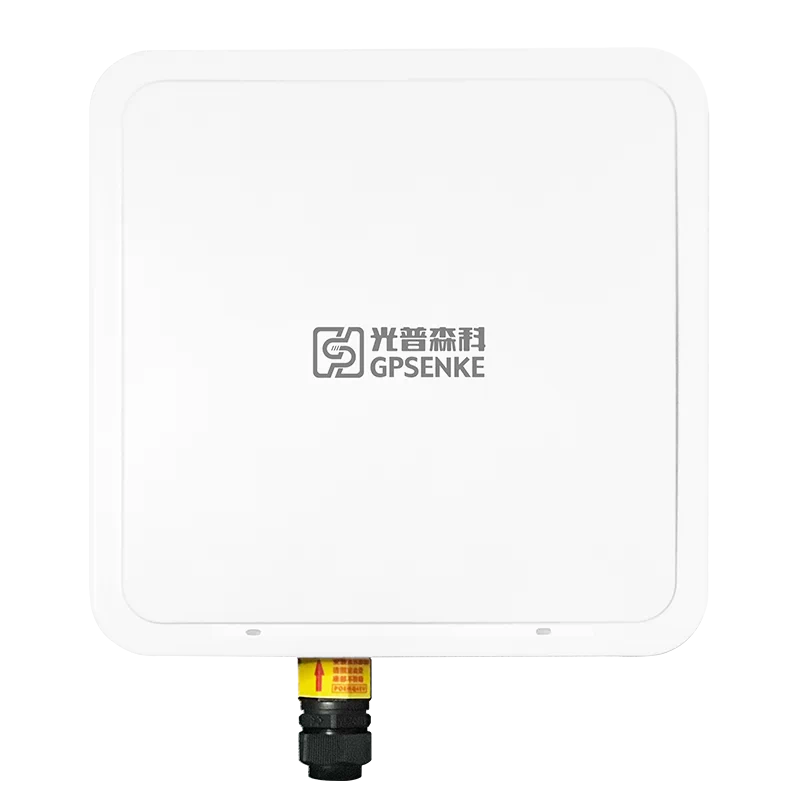

GP-AP1200-D Series is a high-performance, high-speed dual-band wireless industrial outdoor access point designed based on IEEE 802.11ac wave2. It uses a Qualcomm chipset and supports 802.11 b/g/n/ac with speeds up to 1167Mbps.
GP-AP1200-D features an integrated directional antenna with a maximum coverage of 500 meters. The 2.4GHz module supports 802.11b/g/n standards and has a transmission power of 1000mW, allowing outdoor coverage over 1000 meters with sector antennas.
The 5.8GHz module supports 802.11a/n/ac standards, also at 1000mW. The 5GHz band offers lower congestion and better anti-interference, improving signal quality and stability. In 802.11ac mode, it achieves a maximum bandwidth of 866Mbps, with outdoor coverage exceeding 1000 meters when using sector antennas.
Features
- Supports 802.11 b/g/n standard
- Supports 802.11 ac standard with 2-streams and up to 1167Mbps speed
- Supports Dual Band (2.4G + 5G)
- Built-in directional antenna, max WiFi coverage up to 500m
- Supports AP FAT and AP FIT switching
- Supports 4×4 MU-MIMO
- Supports Open System, Shared Key, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
- Supports Gigabit RJ45 Ethernet
- Supports IEEE 802.3 af & at PoE power supply
- Supports DC 12V power supply
- Supports diversified access authentication methods
- Supports IP67 protection level
