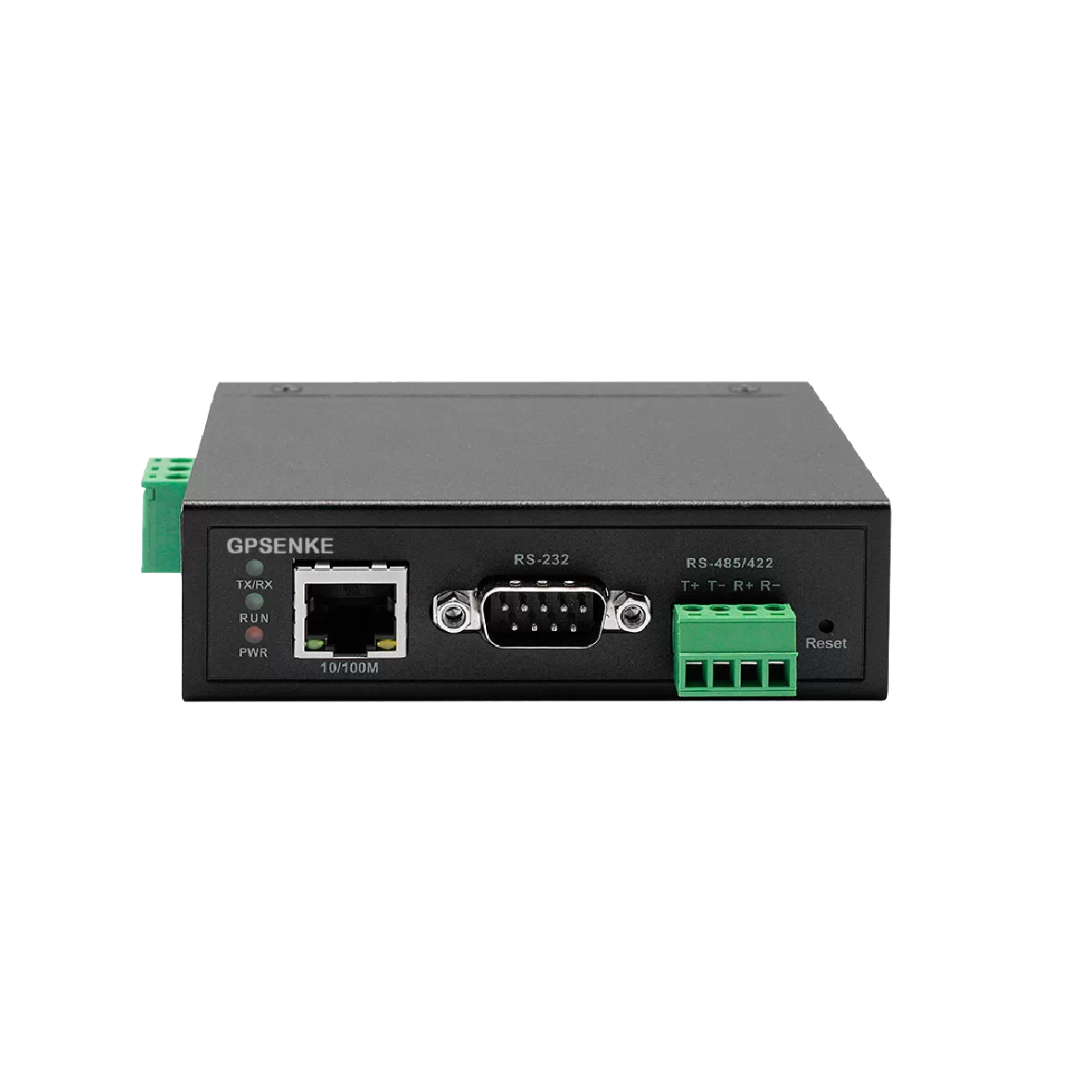

GP-C6001 Serial Server 1*RS-232/485/422 to 1*ETH

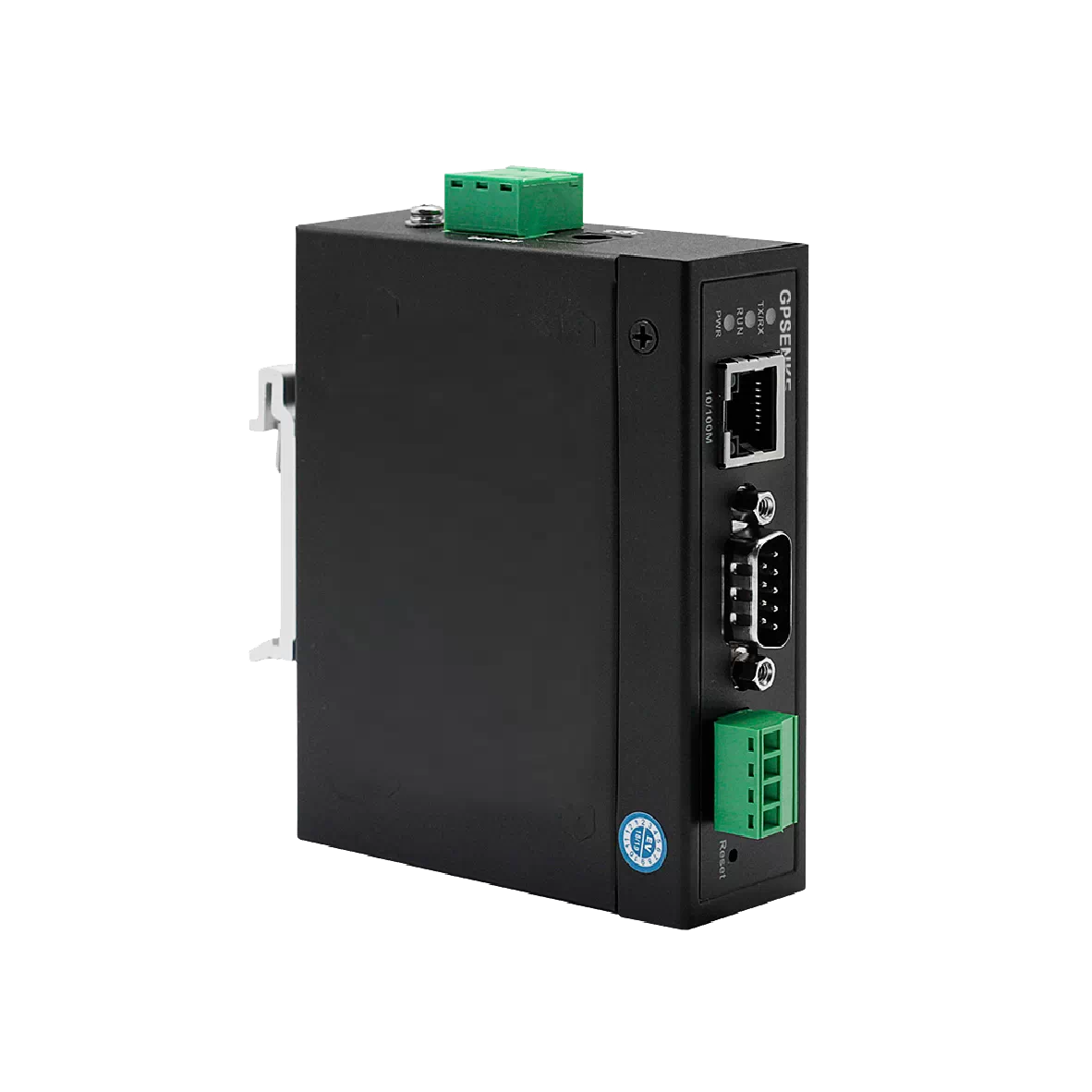

GP-C6001 Serial Server 1*RS-232/485/422 to 1*ETH - Image 2

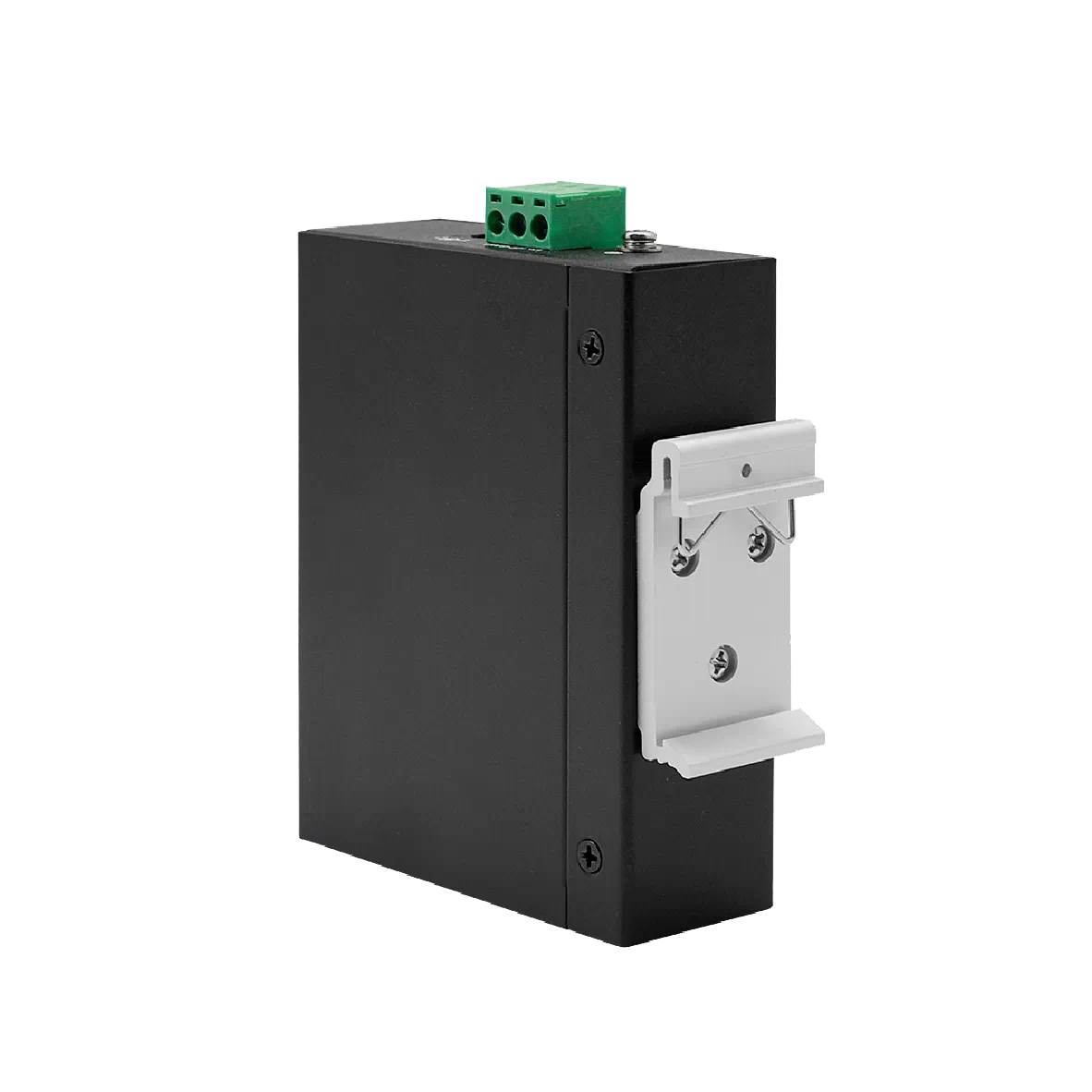

GP-C6001 Serial Server 1*RS-232/485/422 to 1*ETH - Image 3

GP-C6001 Serial Server 1*RS-232/485/422 to 1*ETH

  • Support RS232 / RS485/RS422 serial ports
  • Support for IEEE802.11b/g/n standards
  • SupportVCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair, Modbus TCP SERVER/TCP CLIENT, MQTT
  • Support DC12~57.6V
  • Baud rate ranges from 300-921600bps
  • Support None, Odd, Even.
  • Support TCP Client, TCP Server, UDP Client, DUP Server Mode.
  • Support Modbus TCP/RTU Protocal. Support DHCP.
  • Support automatically obtain IP & Customize static IP
  • Support 10/100Mbps Ethernet, support Auto-MDIX Switch
Request a quote

Need help selecting the right model? Our Perth team can assist with design, compatibility and deployment.

Categories: , ,
Introduction
GP-C6001 serial device server provides a serial to network function that converts RS-232/485/422 serial ports into TCP/IP network interfaces, enabling transparent bi-directional data transmission between RS-232/485/422 serial ports and TCP/IP network interfaces. Enables serial devices to immediately have TCP/IP network interface functionality.
Features
  • With metal housing and multiple installation design, suitable for industrial control site applications.
  • Wide power input (12~57.6VDC), suitable for different field power supply methods
  • There is 1 RS232/RS485/RS422, to meet the application of multiple serial ports
  • Support a wide baud rate range of 300-921600bps Suitable for applications between different devices
  • Support multiple operation modes: VCOM, MCP, TCP SERVER, TCP CLIENT, UDP
  • Support Remote Pair mode, Modbus TCP SERVER, Modbus TCP CLIENT, MQTT.
  • Support upgrade Web firmware upgrade, convenient for special applications in different occasions
