Introduction

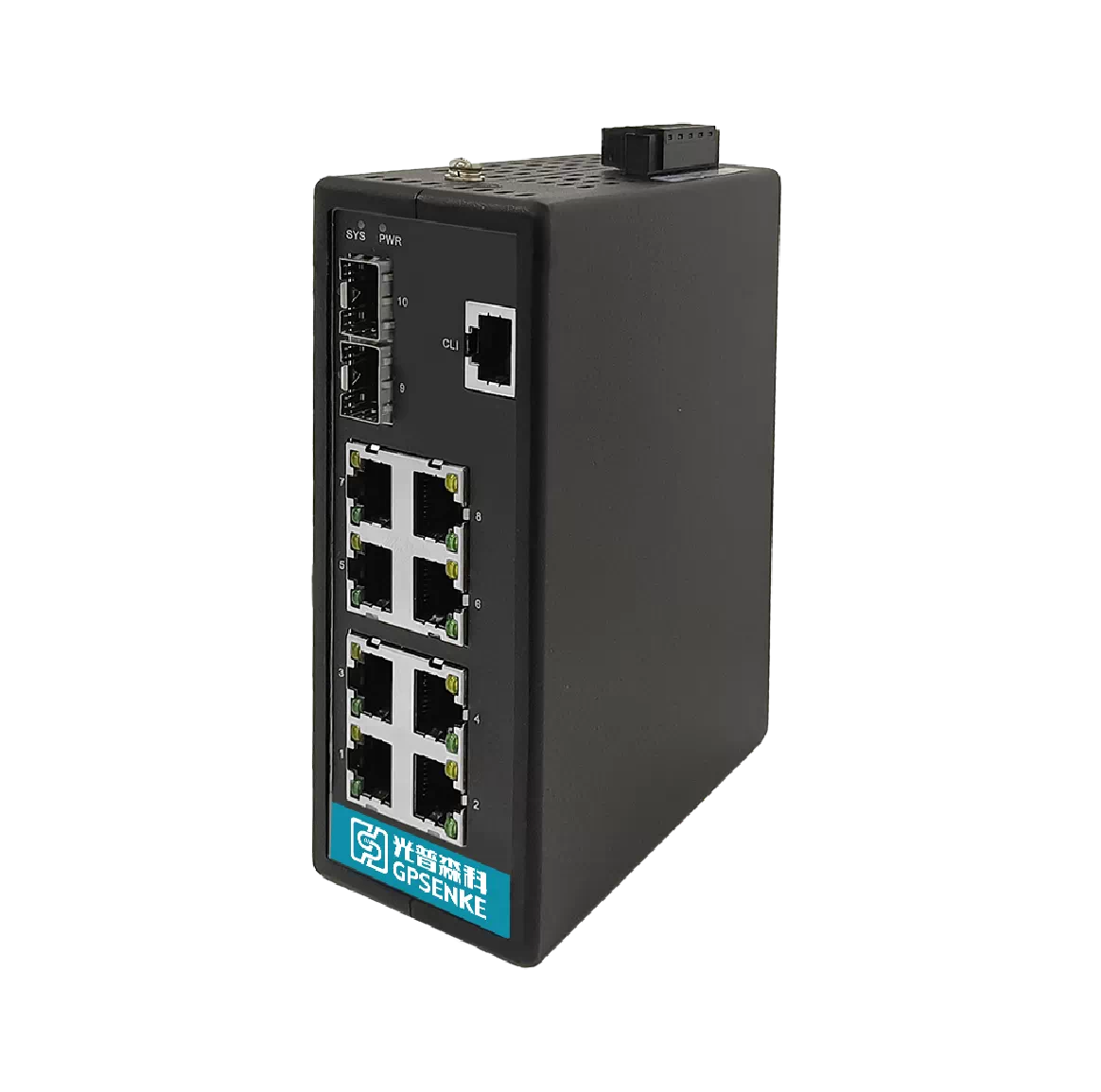

The GPEM2010G-PN series is a high-performance fully managed industrial PN ETH switch, offering 8 x 10/100/1000 Base-TX Ethernet ports(support PoE) and 2 x 1000Base-X SFP fiber ports. It support Ethernet redundancy, support RSTP/STP and MSTP. It also support VLAN/QoS、VLAN、IGMP Snooping、IGMP v1/v2/v3 (IGMP snooping)、LLDP、SNMP v1/v2/v3、RMON、ACL、PVLAN those usual LAY-2 managed function. The GPEM2010G-PN series support dual-power supplry , provide reverse protection and over current protection. It operates in -40°C ~ 75°C temperatures, has high EMC/EMI level, and can work stably in complex electromagnetic environments. With its rugged design and high reliability, the GPEM2010G-PN series is ideal for use in demanding environments for new energy energy, electrical power plant, intelligent transportation, and video surveillance, offering a secure and dependable solution for large LAN deployments. Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports Support 2*1000Base-X SFP Fiber ports Support dual 24–240VDC / 100–240VACpowe, or dual48–54VDC dual power (PoE Model) Support 52Gbps switching capacity Support ring topology and GP-Ring® media redundancy protocol based on IEC62439 Support simple network management via Web browser, CLI, Telnet, and serial console Support port-based VLAN, IEEE 802.1Q VLAN, and GVRP Support QoS (IEEE 802.1P/1Q and TOS/DiffServ) Support IEEE 1588 PTP for precise network time synchronization Support PoE power supply (IEEE 802.3af/at standards, Max. output power ≤30W ) Support PoE management, including PoE device detection and power management IP40-rated protection, fanless DIN-rail mounting design Operating temperature range: -40°C to +75°C MTBF ≥ 400,000 hours
Features
- Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports
- Support 2*1000Base-X SFP Fiber ports
- Support dual 24–240VDC / 100–240VACpowe, or dual48–54VDC dual power (PoE Model)
- Support 52Gbps switching capacity
- Support ring topology and GP-Ring® media redundancy protocol based on IEC62439
- Support simple network management via Web browser, CLI, Telnet, and serial console
- Support port-based VLAN, IEEE 802.1Q VLAN, and GVRP
- Support QoS (IEEE 802.1P/1Q and TOS/DiffServ)
- Support IEEE 1588 PTP for precise network time synchronization
- Support PoE power supply (IEEE 802.3af/at standards, Max. output power ≤30W )
- Support PoE management, including PoE device detection and power management
- IP40-rated protection, fanless DIN-rail mounting design
- Operating temperature range: -40°C to +75°C
- MTBF ≥ 400,000 hours
