Introduction
The GPEM2010G-PN series is a high-performance fully managed industrial Ethernet switch, offering 8 x 10/100/1000 Base-TX Ethernet ports and 2 x 1000Base-X SFP fiber ports. The ERPS self-healing time ≤ 50ms, and it support VLAN/QoS、VLAN、IGMP Snooping、IGMP v1/v2/v3 (IGMP snooping)、LLDP、SNMP v1/v2/v3、RMON、ACL、PVLAN those usual LAY-2 managed function. The GPEM2010G-PN series support DC 12~36v dual-power, provide reverse protection and over current protection. It operates in -40°C ~ 75°C temperatures, has high EMC/EMI level, and can work stably in complex electromagnetic environments. With its rugged design and high reliability, the GPEM2010G-PN series is ideal for use in demanding environments for new energy energy, electrical power plant, intelligent transportation, and video surveillance, offering a secure and dependable solution for large LAN deployments. . Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports Support 2*1000Base-X SFP Fiber ports Support DC12~36v power edundant power supply Support reverse/over current protection Support PI(PROFIBUS International) standard Support PROFINET (PN) RT level Support Ring networking with PLCs Compatible with Siemens' TIA Portal software. Support VLAN/IGMP/QoS/LLDP/802.1X/DDM/IPV6/Web/SNMP/Telnet/TFTP/Web upgrading Support G.8032 ERPS protocol, recovery time ≤50ms Support Class A EMI Protection Support IP40 fan-less and Din-rail hardware design Support -40 °C ~+75°C operation temperature
Features
- Support 8 * 10/100/1000Base-TX RJ45 Ethernet ports
- Support 2*1000Base-X SFP Fiber ports

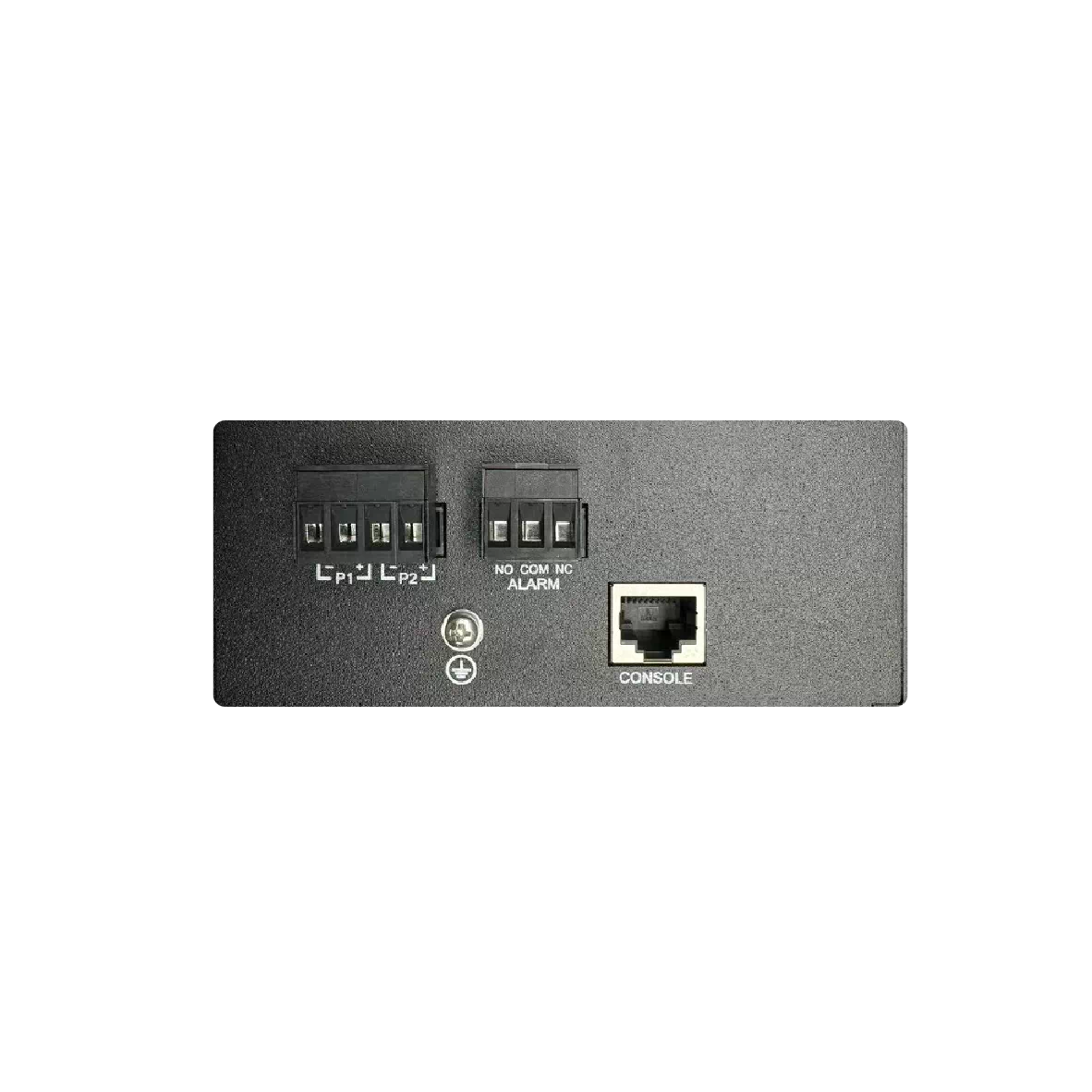

- Support DC12~36v power edundant power supply
- Support reverse/over current protection
- Support PI(PROFIBUS International) standard
- Support PROFINET (PN) RT level
- Support Ring networking with PLCs Compatible with Siemens' TIA Portal software.
- Support VLAN/IGMP/QoS/LLDP/802.1X/DDM/IPV6/Web/SNMP/Telnet/TFTP/Web upgrading
- Support G.8032 ERPS protocol, recovery time ≤50ms
- Support Class A EMI Protection
- Support IP40 fan-less and Din-rail hardware design
- Support -40 °C ~+75°C operation temperature
