Introduction

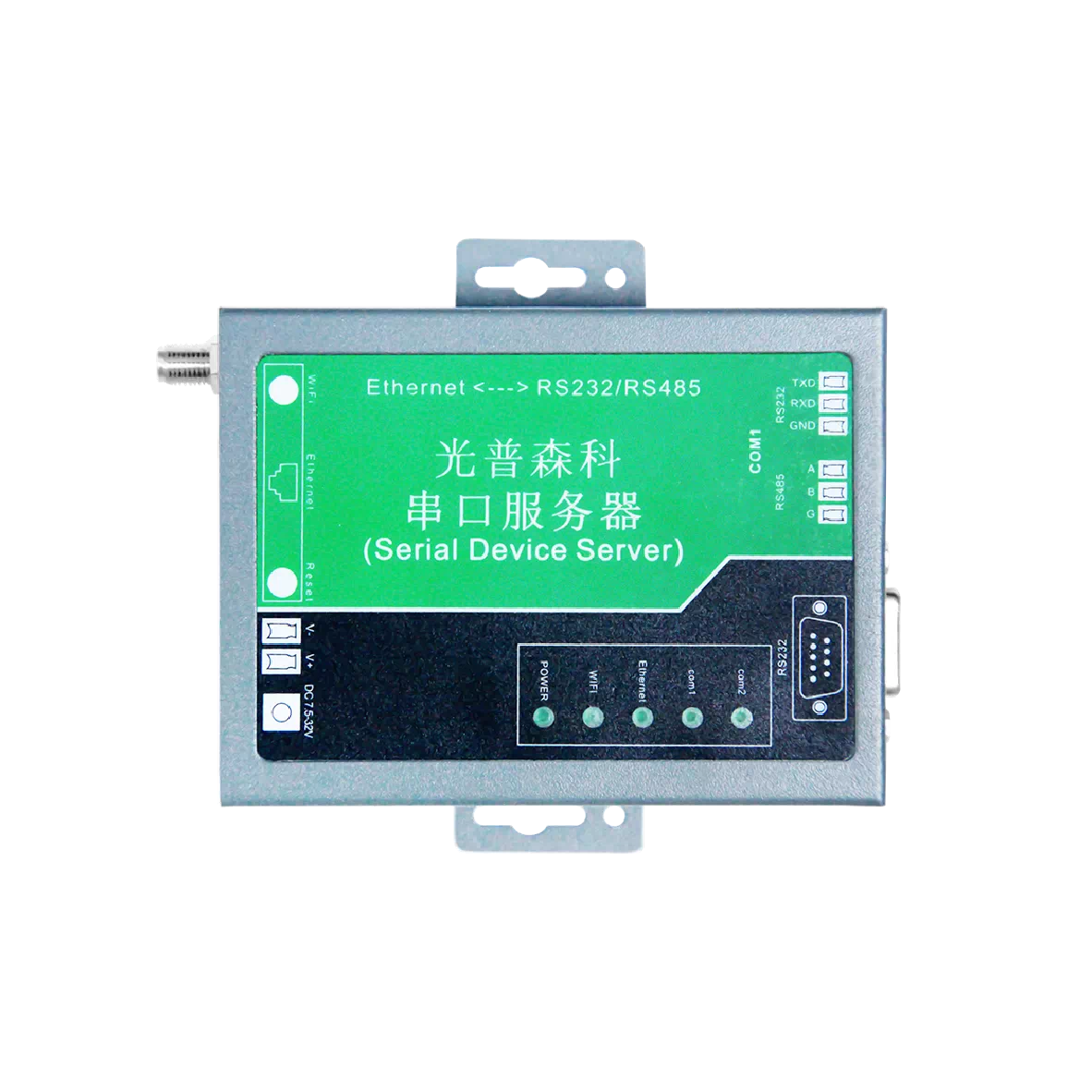

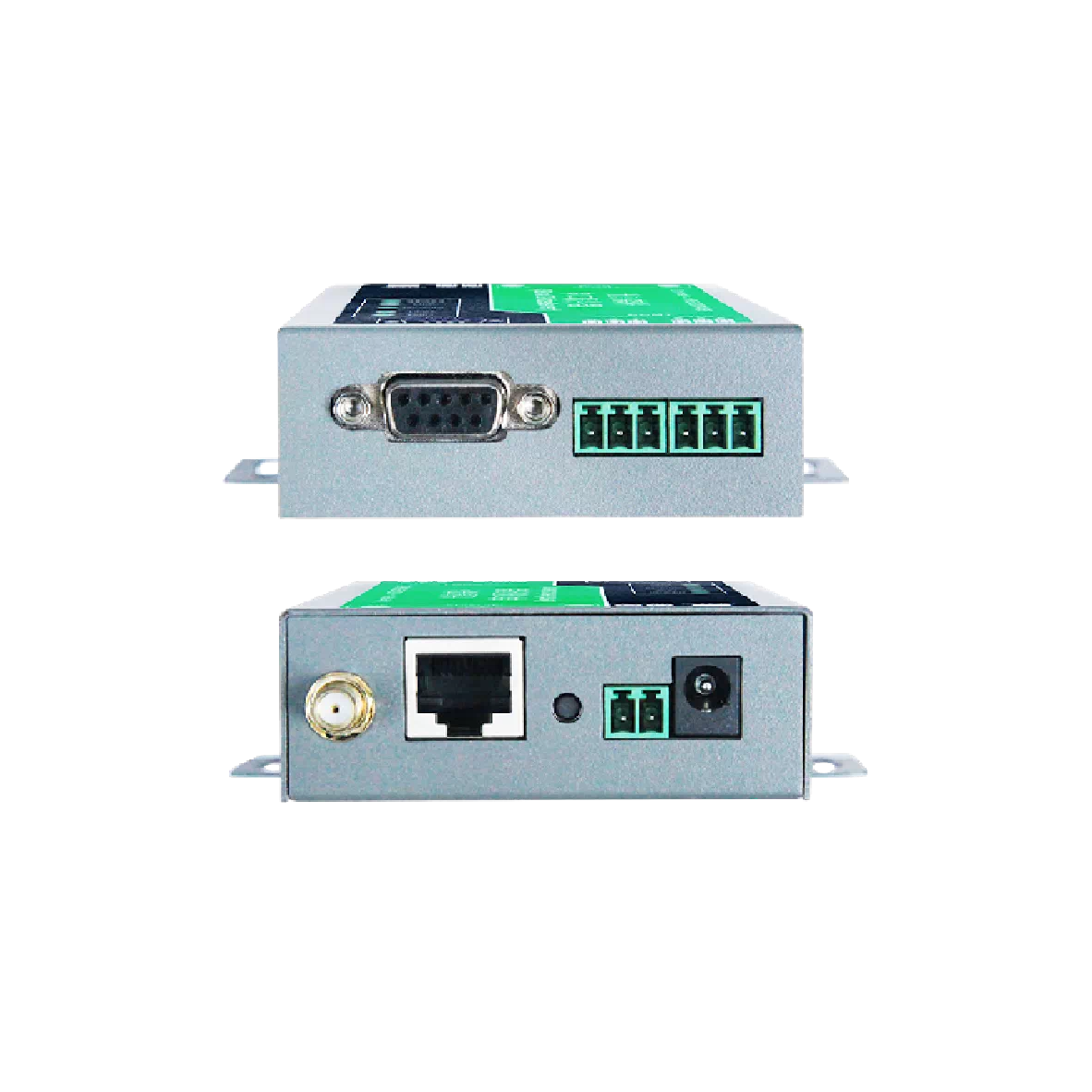

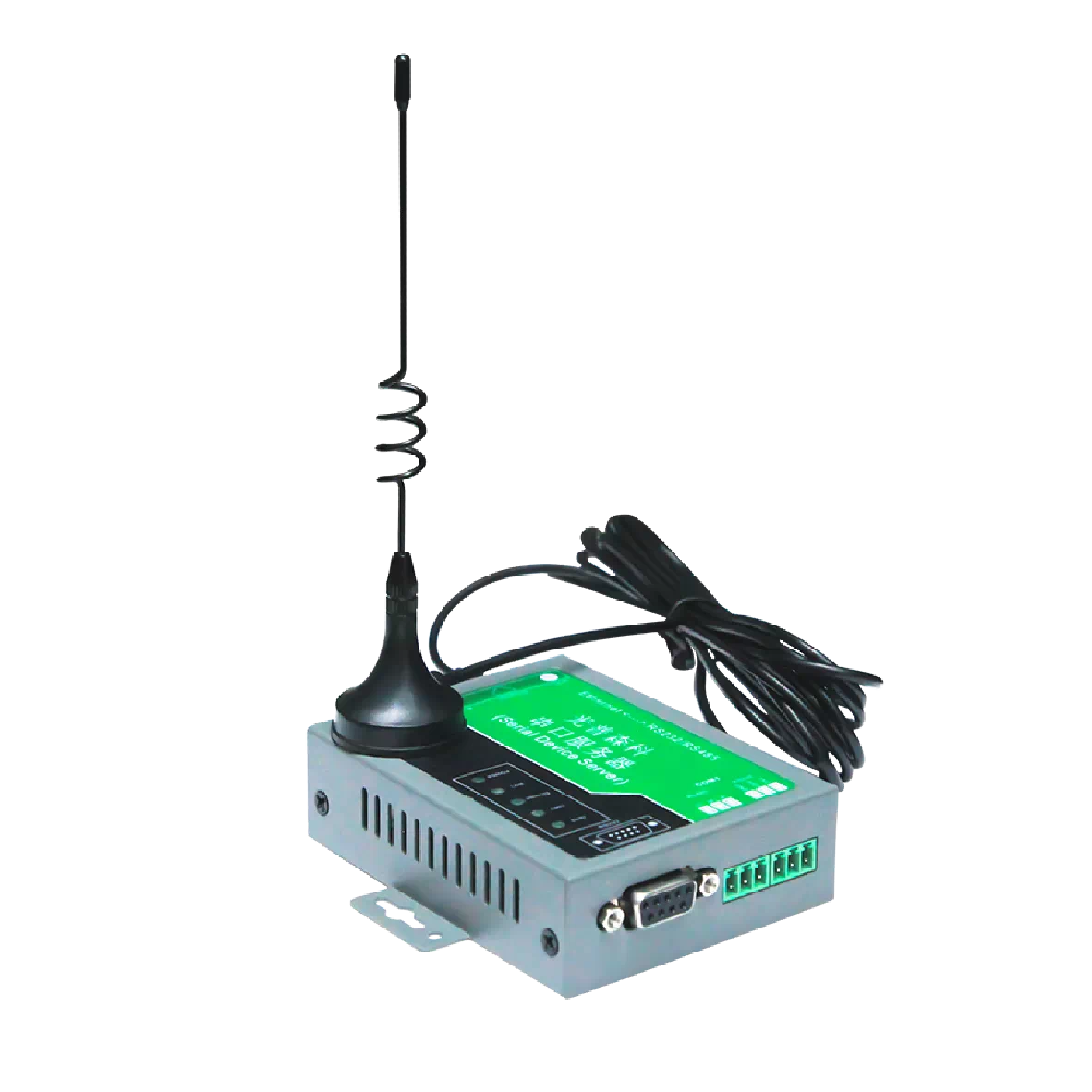

The GP-C4002 Dual Serial Port Server is a device designed for rapid bidirectional data transmission between serial ports and network interfaces. All protocol conversions are handled automatically within the product, allowing users to achieve data reception and transmission between the RS232/RS485 serial port and the network interface with minimal configuration.
The GP-C4002 supports 2.4G WiFi with IEEE802.11b/g/n standard. It Supports TCP/UDP/Modbus protocols, dynamic DHCP, and static IP configuration. The product's parameters can be easily configured via the built-in web interface, ensuring a quick and straightforward setup.
The GP-C4002 is widely used in various industry solutions, including industrial PLCs, smart water management, smart power grids, wastewater treatment, building automation, industrial robots, and medical devices.
Features
- Support RS232 / RS485 double serial ports
- Support for IEEE802.11b/g/n standards
- Support VPN tunnel protocol Support Watchdog Function
- Support DC Power & Pin Power
- Baud rate ranges from 2400bps to 115200bps.
- Support None, Odd, Even.
- Support TCP Client, TCP Server, UDP Client, DUP Server Mode.
- Support Modbus TCP/RTU Protocal. Support DHCP.
- Support automatically obtain IP & Customize static IP
- Support 10/100Mbps Ethernet, support Auto-MDIX Switch
- Support WiFi/ Bluetooth/LoRa (Optional)
